SEKO BEC Celebrating 42 Years of Excellence​

WATER WELL DRILLING MACHINE

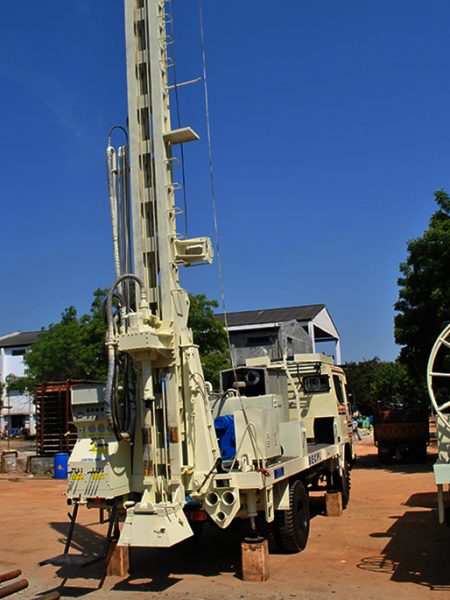

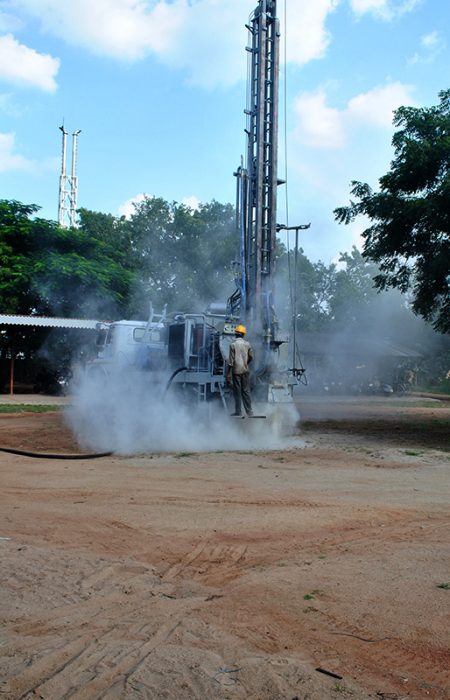

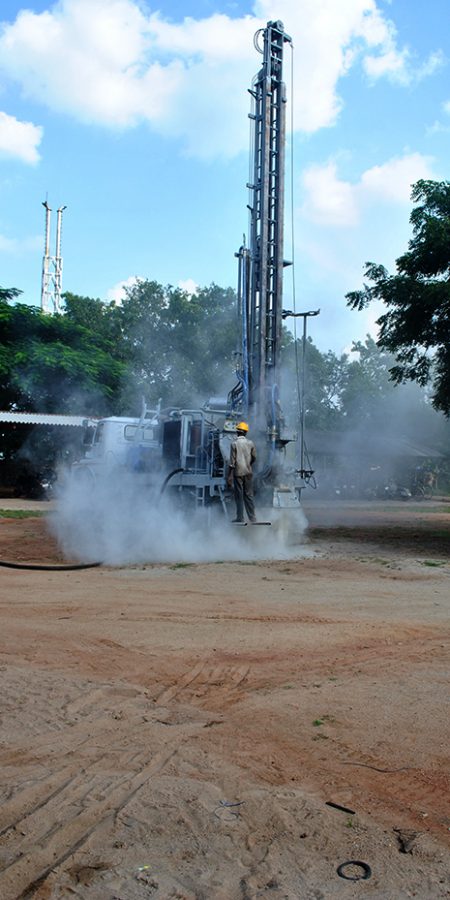

ROTARY CUM DTH DRILLING RIG RCD-150-600

TECHNICAL SPECIFICATIONS
MountingIVECO/Ashok Leyland/TATA Vehicle
Drilling Capacity

I) 061/2w holes up to 600 mtrs by DTH method

II) 0121/2w holes up to 600 mtrs by Rotary method in steps

III) 0141/2w holes up to 300 mtrs by Rotary method in steps

IV) 0161/2w holes up to 150 mtrs by Rotary method in steps

Top Head
Driving System
Max. Torque
Max. RPM

Hydraulic Motor and Gear Box

740 Kg. Mtr.

0 to 120 RPM

Feed System
Driving System
Max. Pull up force
Max. Pull down force

Hydraulic Cylinder with Multiple Wire Rope Combination

30000 Kg.

19000 Kg

Mud Pump1400 LPM@20.0 Kg/cm2 driven by Hydraulic Motor

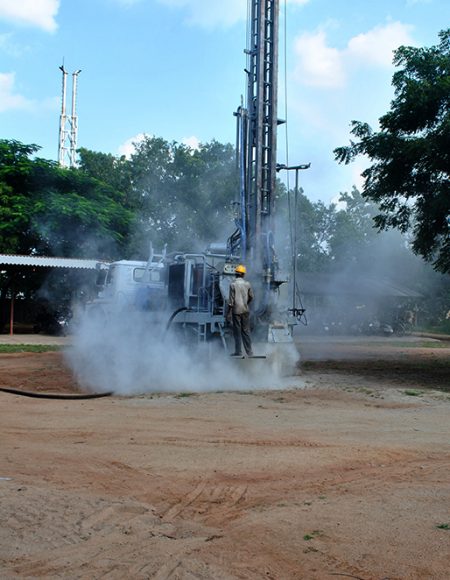

Sekobec-water-hole-drilling-machine-product

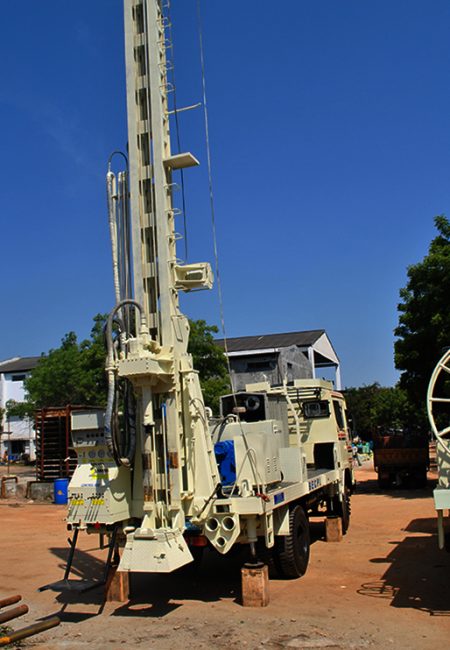

Sekobec-water-hole-drilling-machine-product-rig-2

WATER WELL DRILLING MACHINE

ROTARY CUM DTH DRILLING RIG RCD-150-300

TECHNICAL SPECIFICATIONS
MountingAshok Leyland Taurus/TATA Vehicle
Drilling Capacity

I) 061/2w holes up to 300 mtrs by DTH method

II) 0121/2w holes up to 300 mtrs by Rotary method in steps

Top Head
Driving System
Max. Torque
Max. RPM

Hydraulic Motor and Gear Box

450 Kg. Mtr.

0 to 120 RPM

Feed System
Driving System
Max. Pull up force
Max. Pull down force

Hydraulic Cylinder with Multiple Wire Rope Combination

15000 Kg.

9500 Kg

Mud Pump1020 LPM@15.5 Kg/cm2 driven by Hydraulic Motor

WATER WELL DRILLING MACHINE

TEST PUMP UNIT

TECHNICAL SPECIFICATIONS
MountingAshok Leyland/TATA Truck
Submersible Pump Handling Capacity

300 mtrs depth

GI Pipe Handling

2w x 6 mtrs G.I. Pipe

Hoist
Drive
Capacity
Speed



Hydraulic

5 Tons

8 mtrs / min

Hydraulic Levelling Jacks
Number of Jacks
 Max. Capacity of Each Jack
4 Nos
11782 Kg

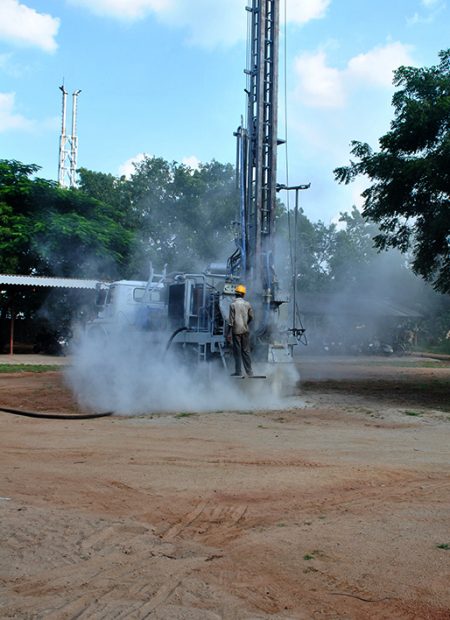

Sekobec-water-hole-drilling-machine-product

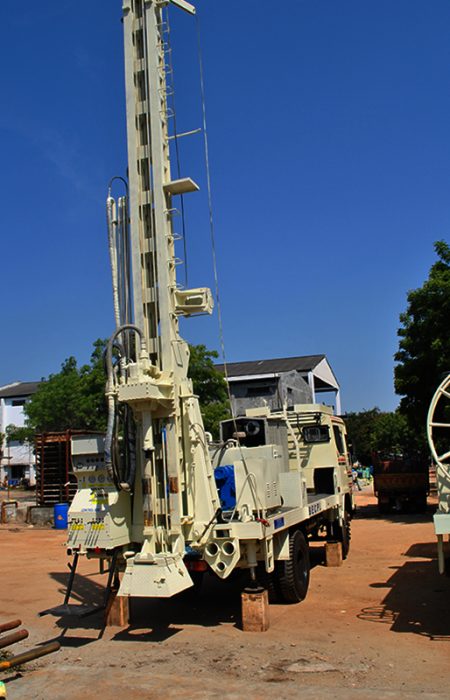

Sekobec-water-hole-drilling-machine-product-rig-2

WATER WELL DRILLING MACHINE

TRUCK MOUNTED ROTARY CUM DTH & CORE DRILLING RIG

TECHNICAL SPECIFICATIONS
MountingAshok Leyland Taurus/TATA / MAN / AMW
Drilling Capacity

I) 061/2w holes up to 300 mtrs by DTH

II) 0121/2w holes up to 300 mtrs by Rotary method in steps

III) 0161/2w holes up to 100 mtrs by Rotary method in steps

IV) NQ hole up to 150 mtrs by core drilling

Top Head for DTH & Rotary Mode
Driving System
Max. Torque
Max. RPM



Hydraulic Motor and Gear Box

450 Kg. Mtr.

0 to 120 RPM

Top Head for Core Mode
Max. Torque
Max. RPM



70 Kg. Mtr. @ 450 RPM

35 Kg. Mtr. @ 900 RPM

Feed System
Driving System
Max. Pull up force
Max. Pull down force



Hydraulic Cylinder with Multiple Wire Rope Combination

10681 Kg.

8636 Kg

WATER WELL DRILLING MACHINE

CRAWLER MOUNTED DTH DRILL

TECHNICAL SPECIFICATIONS
MountingHeavy Duty Crawler
Drilling Capacity

I) 0175 to 0215 holes up to 30.0 mtrs in soft/consolidated formation

II) 0115mm to 0125mm holes up to 120 mtrs & 0150mm holes up to 90 mtrs by DTH method in Hard Rock and Abrasive Formation

Top Head
Driving System
Max. Torque
Max. RPM

Hydraulic Motor and Gear Box

400 Kg. Mtr.

0 to 100 RPM

Feed System
Driving System
Max. Pull up force
Max. Pull down force



Hydraulic Cylinder with Multiple Wire Rope Combination

6810 Kg.

4077 Kg

Hydraulic Levelling Jacks
No. of Jacks
Max. Capacity of Each Jack

4 Nos.
19367 Kg

Deck Engine
Capacity		Cummins / Eqivalent
169 HP @ 2100 RPM
Casing Hoist3.5 Tons Capacity
Auxiliary Winch1.0 Tons Capacity
Sekobec-water-hole-drilling-machine-product
Sekobec-water-hole-drilling-machine-product-rig-2

BLAST HOLE DRILLING MACHINE

6W CRAWLER MOUNTED BLAST HOLE DRILL

TECHNICAL SPECIFICATIONS
MountingHeavy Duty Crawler
Drilling Capacity0165 X 35 mtrs
Top Head
Driving System



Hydraulic Motor and Gear Box

Feed System
Driving System Combination
Max. Pull up force
Max. Pull down force



Hydraulic Cylinder with Multiple Wire Rope Combination

8636 Kg.

10681 Kg

BLAST HOLE DRILLING MACHINE

SELF CONTAINED CRAWLER DRILL

TECHNICAL SPECIFICATIONS
MountingHeavy Duty Crawler
Drilling Capacity0105mm  to 0114mm holes using DTH method up to the depth of 20.0 mtrs
Top Head
Max. Torque
Max. RPM

Hydraulic Motor and Spur Gear Box

110 Kg. Mtr.

0 to 60 RPM

Feed System
Driving System
Max. Pull down force



Hydraulic Motor with gear box

2000 Kg.

Max. Tramming Speed1.4km/hr
Gradability
Track Oscillation		30%
Through Twin Hydraulic Cylinders
Dust ControlHydraulically driven water injection pump
Hydraulic system
Rod Changer		Onboard 300 CFM @ 200 PSI screw compressor powered by adequate diesel engine and the drive for hydraulic pump is from the Jack shaft of the air end.
Manual two rod handling
Dust Control Wet drilling arrangement for dust suppression
Sekobec-water-hole-drilling-machine-product
Sekobec-water-hole-drilling-machine-product-rig-2

BLAST HOLE DRILLING MACHINE

WAGON DRILL

TECHNICAL SPECIFICATIONS
MountingTyre Mounted Wagon Drill
Drilling Capacity0115mm X 30 mtrs
Top Head
Driving System
Max RPM
Max H.P
Max. Torque



Air Motor with Gear Box

0-60 RPM

6 H.P

110 Kg mtrs

Feed System
Driving System
Max H.P
Max. Pull up/Pull down
Boom Raising



Air Motor with Gear Box

6 H.P

2500 Kg.

Hydraulic Cylinder

CORE DRILLING MACHINE

TRACTOR MOUNTED CORE DRILLING RIG

TECHNICAL SPECIFICATIONS
MountingTracktor (4×2) or (4×4)
Drilling CapacityNW Diameter holes up to 150 mtrs
Top Head
Driving System
Max. Output Torque

Hydraulic Motor and Gear Box

70 Kg. mtrs @ 300 RPM

35 Kg. mtrs @ 600 RPM

Feed System
Driving System
Max. Pull up force
Max. Pull down force
Max. Pull up speed



Hydraulic Cylinder with Multiple Wire Rope Combination

3813 Kg.

2829 Kg

15 mtrs/min

Auxiliary Winch
Max. Lifting Capacity
Max. Lifting Speed		1000 Kg
10 mtrs/min
Sekobec-water-hole-drilling-machine-product
Sekobec-water-hole-drilling-machine-product-rig-2

PILING AND CONSTRUCTION RIG

SKID MOUNTED HORIZONTAL DRILLING RIG

TECHNICAL SPECIFICATIONS
MountingHeavy Duty Skid
Drilling Capacity0450mm holes up to 50 mtrs by DTH method in steps
Top Head
Driving System
Max. Torque
Max RPM



Hyduallic Motor and Gear Box

450 Kg mtrs

0-80 RPM

Feed System
Driving System
Max Thrust Force



Hydraulic Cylinder with Multiple Chain and Spracket system

19000 Kg

PILING AND CONSTRUCTION RIG

PILE DRILLING RIG

TECHNICAL SPECIFICATIONS
MountingHeavy Duty Crawler
Drilling Capacity01000mm pile by Auger Drilling
Top Head
Max. Torque
Max. Speed
Max. Spin off speed

Bent Axis Hydraulic Motors and Spur Gear Box

10000 Kg. mtrs

10 RPM

90 RPM

Feed System
Max. Pull up force
Max. Pull down force



30 Tons

14.7 Tons

Sekobec-water-hole-drilling-machine-product
Sekobec-water-hole-drilling-machine-product-rig-2

SPECIAL PURPOSE MACHINERY

CRAWLER MOUNTED DTH CUM CORE CUM REVERSE CIRCULATION DRILLING RIG

TECHNICAL SPECIFICATIONS
MountingHeavy Duty Crawler
Drilling Capacity

I) 061/2w holes up to 300 mtrs by DTH method

II) 05-51/2w holes up to 200 mtrs by Reverse

III) NQ Diameter holes up to 800 mtrs by core drilling

Top Head
Driving System
Max. Torque
Max Speed
Hydraulic Motor and Gear Box
30 Kg. mtrs to 500 Kg. mtrs
0-1000 RPM
Feed System
Driving System
Max. Pull up force
Max. Pull down force
Hydraulic Cylinder with Multiple Wire Rope Combination
Cummins/Equivalent
260 H.P @ 2200 RPM
Main Winch5 Tons Capacity

SPECIAL PURPOSE MACHINERY

SKID MOUNTED PORTABLE HORIZONTAL DTH DRILLING RIG FOR HYDRO PROJECTS

TECHNICAL SPECIFICATIONS
Drilling Capacity0183mm Horizontal Holes between 0° to ±15° upto 20 mtrs
MountingHeavy Duty Skid
Top Head
Driving Sytem
Max. Torque
Max. Speed



Hydraulic Motors and Gear Box

60 Kg. mtrs

0-80 RPM

Winch Motor
Max. Pull up force
Pull up speed



1000 Kg

8 mtrs/min

Prime Mover10 H.P Diesel Engine with Electric Start
Sekobec-water-hole-drilling-machine-product
Sekobec-water-hole-drilling-machine-product-rig-2

SPECIAL PURPOSE MACHINERY

CRAWLER MOUNTED DTH DRILLING RIG FOR UNDER GROUND MINING

TECHNICAL SPECIFICATIONS
Drilling Capacity

0165mm holes up to 70 mtrs, 057mm holes between 0° to 90° upto 20mtrs with hydraulic drifter

MountingHeavy Duty Crawler
Top Head
Driving System
Max. Torque
Max Speed
Hydraulic Motor and Gear Box
240 Kg. mtrs
0-100 RPM
Feed System
Driving System
Max. Pull up force
Max. Pull down force
Hydraulic Cylinder with Multiple Wire Rope Combination
4800 Kg
2400 Kg
Prime Mover50 H.P Flame Proof Electric Motor
Water Pump
Capacity		36 LPM @ 28 Bar

SPECIAL PURPOSE MACHINERY

RAIL MOUNTED ANGLE DRILLING RIG

TECHNICAL SPECIFICATIONS
MountingRail Mounted
Drilling Capacity0115/0152 mm Angle Holes up to a depth of 45 mtrs by DTH and Odex method
Rotation Head
Max. Output Torque		200 Kg. mtrs @ 60 RPM
Feed System
Max. Pull up force
Max. Pull down force
Max. Pull up speed



5500 Kg

4500 Kg

15 mtrs/min

Auxiliary Winch
Max. Lifting Capacity
Max. Lifting Speed



1000 Kg

10 mtrs/min

Mast Raising Cylinder
Number of Cylinders
Max Capacity of Cylinder		1 No.
24630 Kg
Sekobec-water-hole-drilling-machine-product
