WATER WELL DRILLING MACHINE

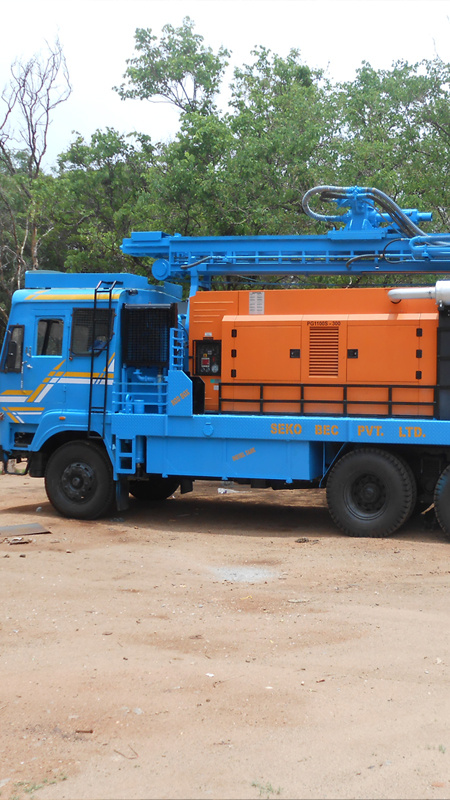

TRUCK MOUNTED ROTARY-CUM-DTH DRILLING RIG
| TECHNICAL SPECIFICATIONS | |||
| Drilling Capacity | DTH | DTH | Rotary |
| Hole Size | 6 ½” | 8” | 14” |
| Drilling Depth | 600 mtrs | 300 mtrs | 600 mtrs |
| Mounting | Ashok Leyland (6 x 4) Truck Chassis | ||
| Mast | The mast is rugged welded steel structure | ||
| Feed System | Two Numbers Hydraulic Cylinders with multiple wire rope Pull down force – 19000 kgs Pull up force – 30000 kgs |
||
| Rotation System | Two Numbers Hydraulic Motors – Series Parallel Max. Torque: 600 kg.mtr. @ 60 RPM 300 kg.mtr. @ 120 RPM |
||
| Power Unit | Truck Engine/Deck Engine Cummins – 320 HP @ 1900 RPM | ||
| Levelling Jacks | 140 dia – 4 Nos | ||
| Water Injection Unit | 80 LPM | ||
| Drill Pipe Handling | 6 mtrs. (20 ft.) | ||
| Mud Pump | 1405-2107 LPM @ 20 bar | ||
| Welding Gen. Set | 400 Amps | ||
| Hoist | 2000 kgs | ||
| Air Compressor | 1500 CFM @ 400 PSI | ||
WATER WELL DRILLING MACHINE
TRUCK MOUNTED ROTARY-CUM-DRILLING RIG
| TECHNICAL SPECIFICATIONS | ||
| Drilling Capacity | DTH | Rotary |
| Hole Size | 6 ½” | 12 ¼” |
| Drilling Depth | 300 mtrs | 300 mtrs |
| Mounting | Ashok Leyland (6 x 4) Truck Chassis | |
| Mast | The mast is rugged welded steel structure. | |
| Feed System | Hydraulic Cylinder with multiple wire rope Pull down force – 6284 kgs Pull up force – 12829 kgs |
|
| Rotation System | Max. Torque – 450 kg.mtr. RPM – 100 | |
| Power Unit | Truck Engine/Deck Engine Cummins – 260 HP @ 2200 RPM | |
| Levelling Jacks | 125 dia – 4 Nos | |
| Water Injection Unit | 80 LPM | |
| Drill Pipe Handling | 4.5 mtrs. (15 ft.) | |
| Mud Pump | 1021 LPM @ 15.43 bar | |
| Welding Gen. Set | 400 Amps | |
| Hoist | 2000 kgs | |
| Air Compressor | 1100 CFM @ 300 PSI | |
WATER WELL DRILLING MACHINE

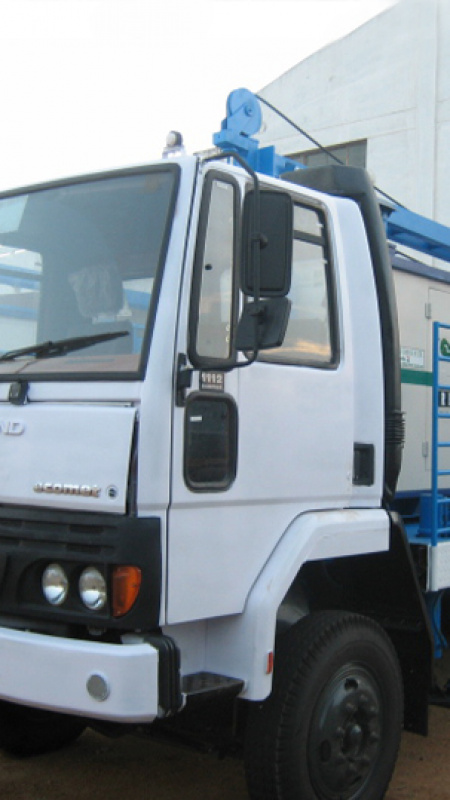

TEST PUMP UNIT
| TECHNICAL SPECIFICATIONS | |
| Mounting | Ashok Leyland/TATA |
| Capacity | 300 mtrs depth |
| Handling | 6 mtrs G.I. Pipe 2” |
| HOIST | Drive : Hydraulic Capacity : 5 Tons Speed : 8 mtrs/min |
| HYDRAULIC LEVELLING JACKS | Number of Cylinders : 4 Nos. Max. Capacity of each cylinder : 11782 kgs |
| MAST RAISING CYLINDER | Number of Cylinders : 1 Nos. Max. Capacity of each cylinder : 11782 kgs |
| HYDRAULIC SYSTEM | Drive : Through side PTO from Truck Engine |
| SUBMERSIBLE PUMP | Capacity : 10 HP |
| WATER LEVEL INDICATOR | Capacity : 300 mtrs polyethylene tape Type : Portable unit with stainless steel probe. |
| ALTERNATOR | Model : 3R1040 KVA : 30 |
WATER WELL DRILLING MACHINE
BEC-TRACK-100 CRAWLER MOUNTED DTH DRILL
| TECHNICAL SPECIFICATIONS | |
| Drilling Capacity | 115mm dia holes upto 20 mtrs |
| Top Head | Driving System : Air Motor with Gear Box RPM : 0-60 RPM HP : 8 HP Torque : 110 kg. mtr. |
| Feed System | Driving System : Air Motor with Gear Box RPM : 0-40 RPM HP : 6 HP |
| Track Details | Track shoe width : 8” Traction Motor : 12 HP Max. Speed : 1.6 km/hr Gradability : 30 deg |
| Hydraulic System | Driving System : Pneumatic Motor H.P. : 6 HP Working pressure : 140 bar |
WATER WELL DRILLING MACHINE

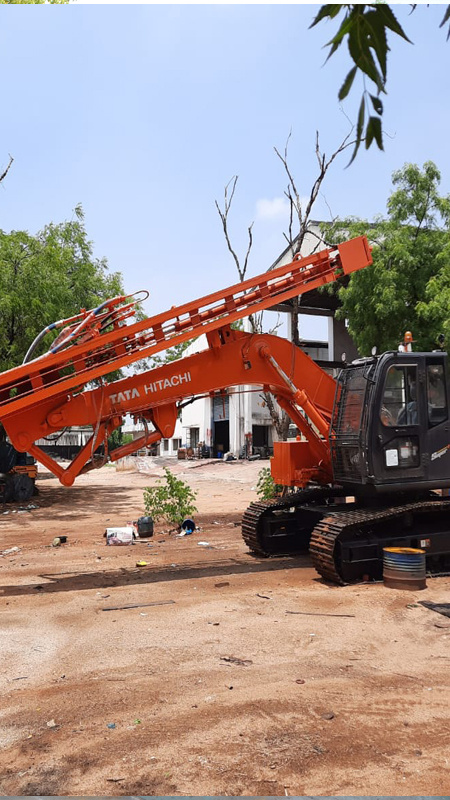

EXCAVATOR MOUNTED 6” BLAST HOLE DRILL
| TECHNICAL SPECIFICATIONS | |
| Drilling Capacity | 165mm dia holes upto 8 mtrs. |
| Rotation Head: | Driving System : Hydraulic Motor and Gear Box Torque : 340 kg. mtr. Speed : 0 to 100 RPM |
| Feed System: | Driving System : Hydraulic Cylinder with Multiple Wire Rope Combination Max. pull up force : 9409 kgs Max. pull down force : 5555 kgs |
| Mounting | Heavy Duty Excavator/TATA/SANY/KOBELCO |
| Water Pump | 35 LPM |
WATER WELL DRILLING MACHINE

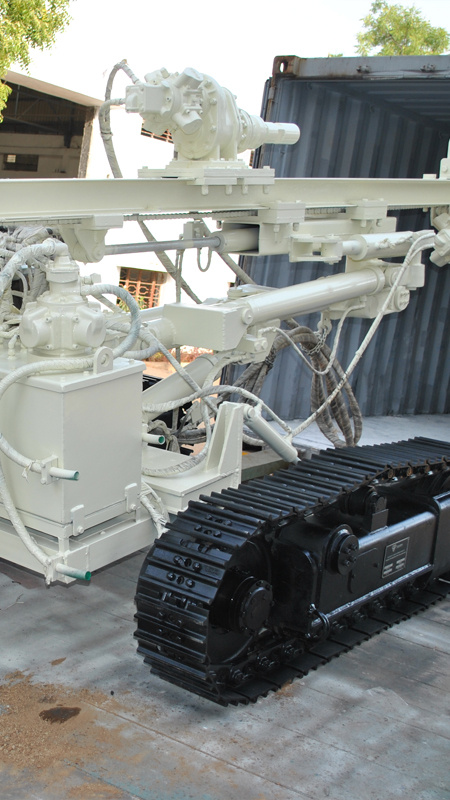

BEC-TRACK-100 SEL CONTAINED CRAWLER DRILL
| TECHNICAL SPECIFICATIONS | |
| Capacity | 105mm to 114mm dia holes upto a depth of 20 mtrs. by DTH method. |
| Mounting | Heavy Duty Crawler |
| Rotation Head | Driving System : Hydraulic Motor & Spur Gear Box Torque : 100 kg. mtr. RPM : 0 to 60 RPM |
| Max Tramming Speed | 1.4 km/hr |
| Gradability | 30% |
| Track Oscillation | Through Twin Hydraulic Cylinders |
| Dust Control | Hydraulically driven Water Injection System |
| Hydraulic System | On Board 300 CFM @ 200 PSI Screw Compressor is powered by adequate diesel engine and the drive for hydraulic pump is from the jack shaft of the air end. |
| Track System | Length of Track : 1640mm Width of Track : 2300 mtrs Type of Track Shoe : Single bar grouser Shoe width : 260mm No. of Bottom Rollers : 5 x 2 |
| Rod Changer | Double Manual Rod Changer |
WATER WELL DRILLING MACHINE
WAGON DRILL
| TECHNICAL SPECIFICATIONS | |
| Mounting | Tyre Mounted Wagon Drill |
| Drilling Capacity | 115mm dia holes upto 20 mtrs. |
| Top Head | Driving System : Air Motor with Gear Box RPM : 0-60 RPM HP : 6 HP Torque : 110 kg. mtr. |
| Feed System | Driving System : Air Motor with Gear Box HP : 6 HP Max. Pull up/Pull down : 2500 kg Boom Raising : Hydraulic Cylinder |
| Water Pump | 35 LPM |
WATER WELL DRILLING MACHINE
TRACTOR MOUNTED CORE DRILLING RIG
| TECHNICAL SPECIFICATIONS | |
| Mounting | Tractor (4 x 2) or (4 x 4) |
| Capacity | NW dia holes upto a depth of 150 mtrs. by Core method. |
| Rotation Head | RPM Range : 0 to 600 Max. Torque : 70 kg.mtr @ 0-300 RPM Min. Torque : 35 kg.mtr @ 0-600 RPM |
| Feed System | Driving System : Hydraulic Cylinder with Multiple Wire Rope Combination Max. pull up force : 3813 kgs Max. pull down force : 2829 kgs |
| Rig Hydraulics | Tractor Engine through PTO |
| Mast Raising Cylinder | Number of Cylinder : 1 No. Max. capacity of each cylinder : 11782 kgs |
| Hydraulic Levelling Jacks | Number of Cylinder : 4 Nos. Max. capacity of each cylinder : 11782 kgs |
| Wire Line Winch | 750 kgs. |
| Water Pump | 50 LPM |
WATER WELL DRILLING MACHINE
SKID MOUNTED HORIZONTAL DRILLING MACHINE
| TECHNICAL SPECIFICATIONS | |
| Drilling Capacity | 450mm dia holes upto a depth of 50 mtrs by DTH method in steps |
| Mounting | Skid |
| Top Head | Driving System : Hydraulic Motor & Gear Box Max Torque : 450 kg. mtr Max RPM : 0 to 80 RPM |
| FEED SYSTEM | Driving System : Hydraulic Cylinder with Chain Combination Max Thrust Force : 19000 kgs |
| Hydraulic Levelling Jacks | Number of Cylinders : 4 Nos. Max. capacity of Cylinder : 19635 kg |
| Water Pump | Capacity : 50 LPM @ 400 PSI |
| Hydraulic Oil Cooler | Heat dissipation capacity : 50,000 k.ca/hr Max. flow : 400 LPM |
| DECK ENGINE | Make : Cummins/Equivalent
Capacity : 260 HP @ 2600 RPM |
WATER WELL DRILLING MACHINE
BEC-TRACK-1000-25 PILE DRILLING RIG
| TECHNICAL SPECIFICATIONS | |
| Mounting | Heavy Duty Excavator |
| Drilling Capacity | 1000mm dia Pile by Auger drilling upto 25 mtrs. |
| Rotation Head | Torque : 10000 kg.mtr. Speed : 10 to 90 RPM |
| Feed System | Max. pull up force : 30 Tons Max. pull down force : 14.7 Tons |
| Main Hoist | 15 Tons |
| Auxiliary Hoist | 6 Tons |
WATER WELL DRILLING MACHINE

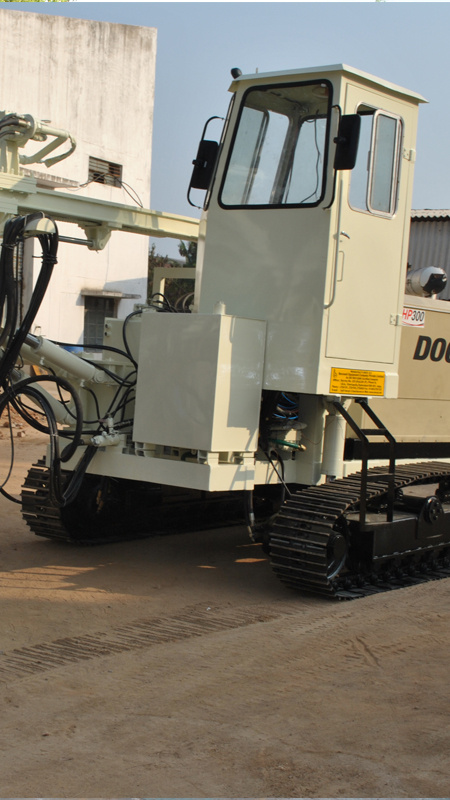

CRAWLER MOUNTED DTH CUM CORE CUM REVERSE CIRCULATION DRILLING RIG
| TECHNICAL SPECIFICATIONS | |
| Capacity | 6 ½” dia holes upto a depth of 300 mtrs. by DTH method. 5” to 5 ½” dia holes upto a depth of 200 mtrs. by Reverse Circulation. NQ dia holes upto a depth of 800 mtrs. by Core method. |
| Mounting | Heavy Duty Crawler |
| Rotation Head | RPM Range : 0 to 1000 Torque Range : 30 kg.mtr to 500 kg.mtr. |
| FEED SYSTEM | Max. pull up force : 10681 kgs Max. pull down force : 8636 kgs |
| Hydraulic Levelling Jacks | Number of Cylinder : 4 Nos. Max. Capacity of each Cylinder : 19635 kgs |
| Deck Engine for Rig Hydraulics | Cummins Make 260 HP @ 2200 RPM |
| Main Winch | 5 Tons |
| Mud Pump | 500 ltrs @ 17 bar Capacity. |
| Welding Gen. Set | 400 Amps Capacity. |
WATER WELL DRILLING MACHINE
RAIL MOUNTED ANGLE DRILLING MACHINE
| TECHNICAL SPECIFICATIONS | |
| Drilling Capacity | 115/152mm dia holes upto a depth of 45 mtrs by DTH & Odex method. |
| Rotation Head | Max output Torque : 200 kg. mtr @ 60 RPM |
| Feed System | Max pull up force : 5500 kg Max pull down force : 4500 kg Max pull up speed : 15 mtr/min |
| Auxiliary Winch | Max. lifting capacity : 1000 kg Max. lifting speed : 10 mtr/min |
| Mast Raising Cylinder | Number of Cylinders : 1 No. Max. capacity of Cylinder : 11782 kg |
| Hydraulic Levelling Jacks | Number of Cylinders : 4 Nos. Max. capacity of Cylinder : 11782 kg |
| Breakout Cylinder | Max Pull back force : 9428 kg |
| Water Pump | Capacity : 36 LPM @ 400 PSI |
| Hydraulic Oil Cooler | Heat dissipation capacity : 40,000 k.ca/hr Max. flow : 200 LPM |
WATER WELL DRILLING MACHINE
CRAWLER MOUNTED DTH DRILLING FOR UNDER GROUND MINING
| TECHNICAL SPECIFICATIONS | |
| Drilling Capacity | 165mm dia holes upto a depth of 70 mtrs by DTH method and 57mm dia holes by Hydraulic Drifter upto a depth of 20 mtrs. |
| Mounting | Heavy Duty Crawler |
| Top Head | Driving System : Hydraulic Motor & Gear Box Max Torque : 240 kg. mtr Max RPM : 0 to 100 RPM |
| Feed System | Driving System : Hydraulic Cylinder with multiple wire rope combination Max Pull up force : 4800 kgs Max pull down force : 2400 kgs |
| Prime Mover | 50 HP Flame Proof Electric Motor |
| Water Pump | Capacity : 36 LPM @ 400 PSI |
WATER WELL DRILLING MACHINE
SMALL RIG
| TECHNICAL SPECIFICATIONS | |
| Mounting | Skid |
| Drilling Capacity | 127mm dia holes upto 20 mtrs. |
| Top Head | Driving System : Hydraulic Motor & Gear Box RPM : 0-80 RPM Torque : 60 kg. mtr. |
| Feed System | Driving System : Hydraulic Motor with Chain Max. pull down force : 1000 kg. Max. pull up force : 1000 kg |
| Mud Pump | Centrifugal mud pump driven by Separate Diesel Engine. |
